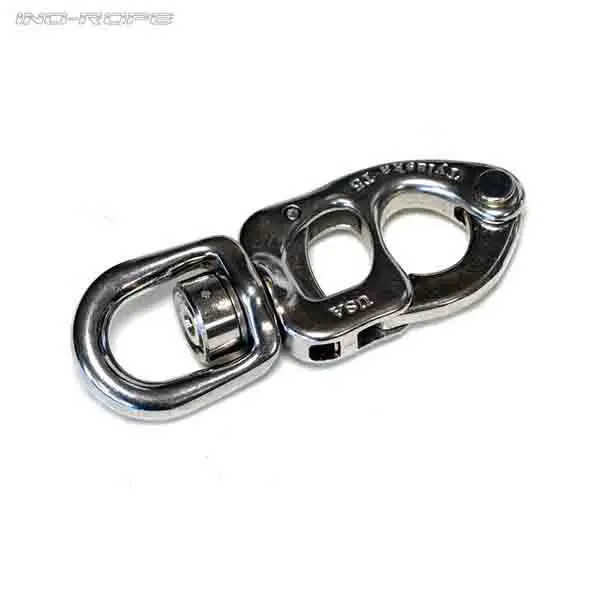

The Tylaska T5 snap shackle has a high breaking load (2,273 kg) for its weight and its size. The favourite snap shackle of the Figaro Class due to its easy opening under load with only one hand!
To mount directly on the eye splice, with a cow hitch knot or a lashing on the eye splice of your halyards or sheets if you want it to remain removable.The Tylaska T5 is available in two versions: standard bail (SB) and large bail (LB). The large bail of the Tylaska T5 enables two sheets or one sheet and a guy to be fitted. Clever!Forged stainless steel, swivelled eye.
|Type||A (mm)||B (mm)||C (mm)||D (mm)||E (mm)||Poids (gr)||Charge de travail||Charge de rupture|
|T5 SB||14.2||14.2||13.5||14.2||74.6||59||1 136 kg||2 273 kg|
|T5 LB||14.2||14.2||20.6||22.2||84.1||74||1 136 kg||2 273 kg|
