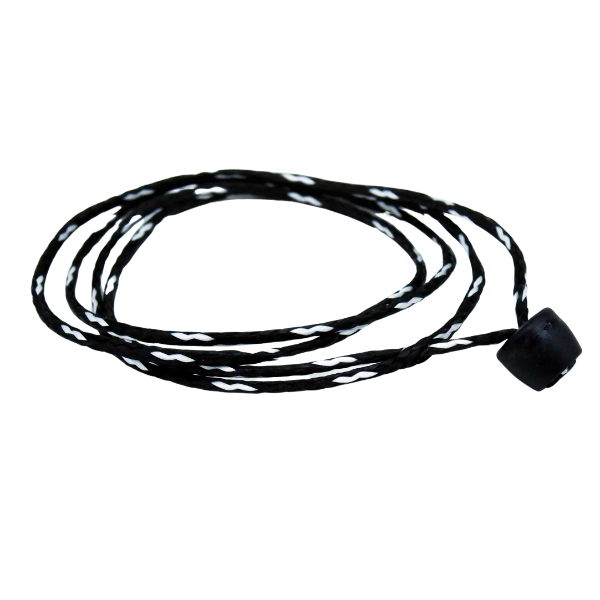

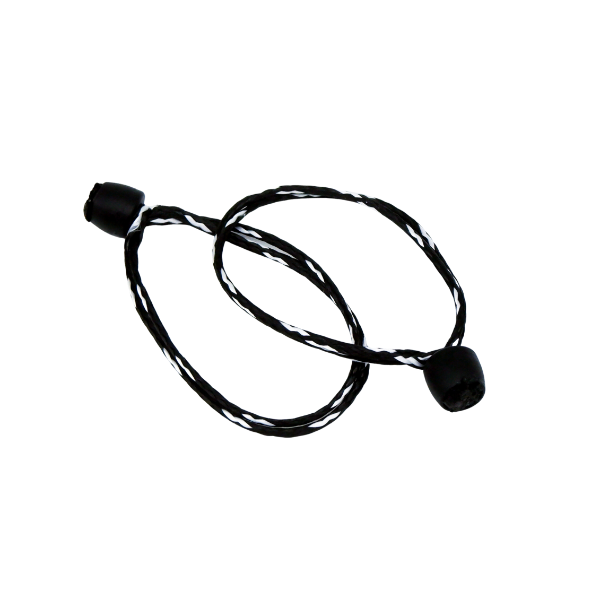

Ultra-light textile shackle – I-Connect LIGHT 0.6
2,50 € – 2,70 €
The first textile shackle cheaper than a stainless steel one!A quick and easy to handle connector system, ultra-light and made of Dyneema SK78.
Description
The I-Connect LIGHT 0.6 connector system was conceived with the same principle as a textile shackle. It is easy to fit, quick to open and close.Ultra-light and multi-purpose, it enables mounting with 2 or 4 turns and 0° or 90° from the fixing point.I-Connect LIGHT 0.6 working load
- Assembly with 2 turns: Working load: 300 kg (SWL)
- Assembly with 4 turns: Working load: 600 kg (SWL)
- Only the 100 mm length allows for a 4-turn assembly
The stainless steel shackle and theINO-BLOCK 3.6 on the photo are sold separately)
Lost among our textile connectors? Follow the guide!
Manille I-Connect Light 0.6 | Charge de travail / Montage 2 Tours | Charge de rupture / Montage 4 Tours | Charge de rupture / Montage 2 Tours | Charge de rupture / Montage 4 Tours | Longueur / Montage 2 tours | Longueur / Montage Simple | Longueur / Manille Ouverte |
---|---|---|---|---|---|---|---|
I-Connect Light 0.6-30 | 300 kg | - | 600 kg | - | 30 mm | 70 mm | 190 mm |
I-Connect Light 0.6-50 | 300 kg | - | 600 kg | - | 50 mm | 110 mm | 230 mm |
I-Connect Light 0.6-100 | 300 kg | 600 kg | 600 kg | 1200 kg | 100 mm | 220 mm | 460 mm |
Additional information
Weight | N/A |
---|---|
Length when closed (2 turns) | 30 mm, 50 mm, 60 mm, 100 mm |
