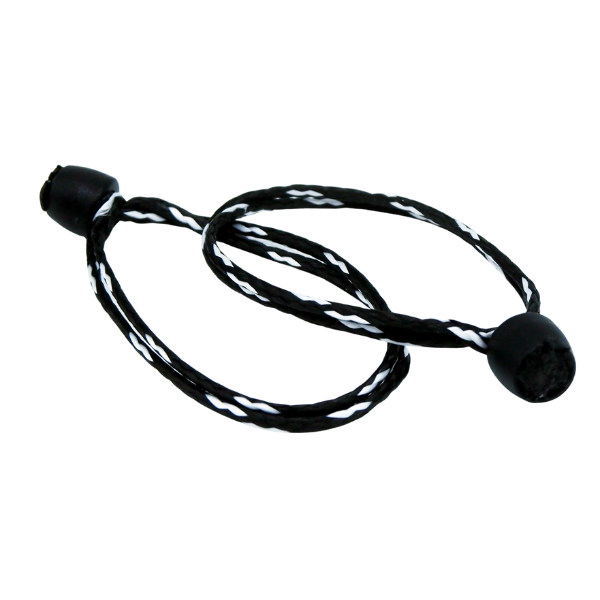

Ultra-light textile shackle – I-Connect LIGHT 1.2

A partir de 3,30

The first textile shackle cheaper than a stainless steel one!A quick and easy to handle connector system, ultra-light and made of Dyneema SK78.

Clear

Description

The I-Connect LIGHT 1.2 connector system was conceived with the same principle as a textile shackle. It is easy to fit, quick to open and close.Ultra-light and multi-purpose, it enables mounting with 2 or 4 turns and 0° or 90° from the fixing point.I-Connect LIGHT 1.2 working load

  • Assembly with 2 turns: Working load: 600 kg (SWL)
  • Assembly with 4 turns: Working load: 1,200 kg (SWL)
  • Only the 100 mm lengths allow a 4-turn assembly

The stainless steel shackle and theINO-BLOCK 3.6 on the photo are sold separately)

Lost among our textile connectors? Follow the guide!



Manille I-Connect Light 1.2Charge de travail / Montage 2 ToursCharge de travail / Montage 4 ToursCharge de rupture / Montage 2 ToursCharge de rupture / Montage 4 ToursLongueur / Montage 2 toursLongueur / Montage simpleLongueur / Manille ouverte
Manille I-Connect Light1.2-30600 kg-1200 kg-30 mm70 mm190 mm
Manille I-Connect Light1.2-50600 kg-1200 kg-50 mm110 mm230 mm
Manille I-Connect Light1.2-100600 kg1200 kg1200 kg2400 kg100 mm220 mm460 mm

Additional information

Weight N/A

Length when closed (2 turns)

30 mm, 50 mm, 60 mm, 100 mm

This product should only be used for the above-mentioned uses. Do not hesitate to contact us if you have any questions.
The installer and user shall be held responsible for any incorrect use.
