High-resistance textile shackle – I-Connect Strop

A partir de 89,90

Specificity
A highly resistant textile connector: The I-Connect Strop is an ultra-light and safe Dyneema connector system for high loads. Select your product according to its breaking load.Please note: loads listed below are appropriate for use doubled up (see specifications table).

Clear

Description

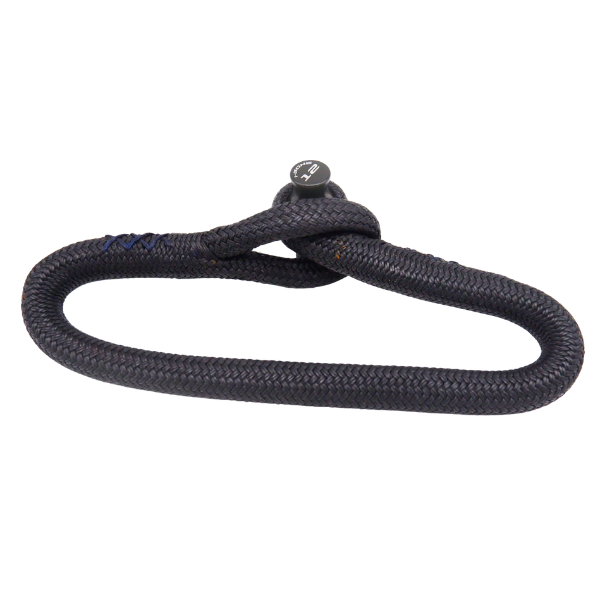

High-resistance textile shackle – I-Connect Strop

High-resistance textile shackle: The I-Connect Strop is an ultra-light and safe Dyneema connector system for high loads. Select your product according to its breaking load.Please note: loads listed below are appropriate for use doubled up (see specifications table).

Safe and easy to install, the I-Connect Strop can bear high loads.It enables the connection of releasable stay cables or spinnaker blocks.Manufactured in our workshop in Concarneau, the Iconnect Strop is a heat set and pre-stretched Dyneema SK99 loop covered with a protective Dyneema SK78 sleeve and a Dogbone closing system.Colour may differ slightly from one I-Connect Strop to another, depending on the shade of grey of the coating solution.The Ino-Block 15 models are sold separately.Are you lost with all our textile connectors? Follow the guide!

RéfCharge de travail
Simple (tonnes)
Charge de rupture
Simple (tonnes)
Charge de travail
Double (tonnes)
Charge de rupture
Double (tonnes)
Longueur "montage simple" (mm)Longueur "montage double" (mm)Longueur manille ouverte (mm)Idéale "montage simple " pour poulie indiquée ci-dessousIdéale "montage double" pour poulie indiquée ci-dessous
I-connect Strop 4-150244815060350IB 4/7.2
I-connect Strop 6-2003661220080450IB 9/12
I-connect Strop 8-2002.4881620080450IB 5.4/7.2
I-connect Strop 12-2506121224250130550IB 9/12
I-connect Strop15-2507.5151530250120700IB 27
I-connect Strop 18-3009181836300100700IB 15/18
I-connect Strop 27-35013.5272754350120800IB 27



Additional information

Weight N/A

Breaking load and length once closed

4 tons 15 cm, 6 tons 20 cm, 8 tons 20 cm, 12 tons 25 cm, 15 tons 25 cm, 18 tons 30 cm

This product should only be used for the above-mentioned uses. Do not hesitate to contact us if you have any questions.
The installer and user shall be held responsible for any incorrect use.
