Textile shackle – High load – HMPE

Description

Textile shackle – High load HMPE

The high-strength textile shackle is an ultra-lightweight, high-modulus polyethylene connection system for heavy loads. Choose your product according to its breaking load.

Reliable, lightweight and easy to install. Hand-made in our Concarneau workshops.

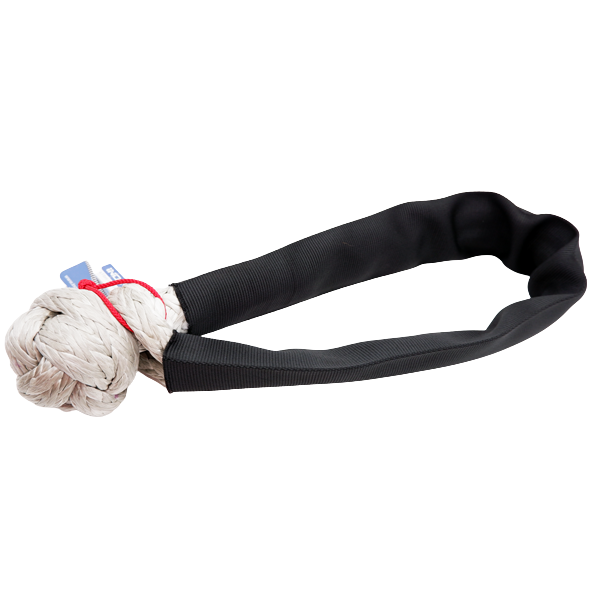

Our textile connectors are made from high-modulus polyethylene braid. The Rope forms an eye at one end and a button knot that acts as a stop at the other.

Historically designed for fastening deck fittings and attaching halyards and sheets in the sailing world, the concept of textile fiber hangers is now used in many fields, including industry, shipping, 4 x 4s…

• Simplicity and reliability of our models (easy to open/close and captive)
• Intuitive, safe operation
• Technical expertise and know-how: mass production, tested and approved resistance
• High strength: the high-quality UHMWPE textile structure guarantees incomparable lightness and excellent abrasion resistance
• Optimized production: lower manufacturing costs
• Made 100% in France



What is HMPE:

UHMWPE stands for Ultra High Molecular Weight Polyethylene. This pretty name designates the “generic” version of Dyneema®. Like Kleenex, Scotch or Frigos, Dyneema is a trade name, much sexier than ” high-modulus polyethylene “, the petroleum-based fiber it refers to.

Our textile connectors are made from high-modulus polyethylene braid. The Rope forms an eye at one end and a button knot that acts as a stop at the other.

Technical specifications :

• 12 Strands
• 3.5 % elongation at break
• Density: 0.98 g/cm³.
• Toughness: 32 cN/dtex
• Polyester protective sheath

Advantages :

• Lightweight Rope with low elongation at break.
• Hydrophobic, rot-proof and buoyant.
• Good abrasion and UV resistance.



Référence	Charge de rupture	Charge de travail	Longueur fermée	Poids
IC_HL_7_180	7 Tonnes	2.3 Tonnes	180 mm	50 g
IC_HL_10_240	10 Tonnes	3.3 Tonnes	240 mm	100 g
IC_HL_16_300	16 Tonnes	5.3 Tonnes	300 mm	160 g
IC_HL_25_360	25 Tonnes	8.3 Tonnes	360 mm	280 g
IC_HL_29_420	29 Tonnes	9.6 Tonnes	420 mm	320 g
IC_HL_35_480	35 Tonnes	11.6 Tonnes	480 mm	560 g
IC_HL_52_540	52 Tonnes	17.3 Tonnes	540 mm	920 g
