Ino Padeye glue-on with insert | Plastic

3,20 5,80  TTC

Padeye, 3D-printed from sustainable, bio-sourced materials, is the ideal solution for fixing all your electrical and electronic equipment quickly and cleanly.

  • Diameter: 20 or 30 mm
  • Insert: M3 or M4 (version without insert also available)
  • Fasten your equipment in just a few minutes, without drilling.
  • Bonding: Sikaflex® 292i polyurethane structural adhesive, commonly used in the boating industry. (Not supplied)
  • Screws not included

Description

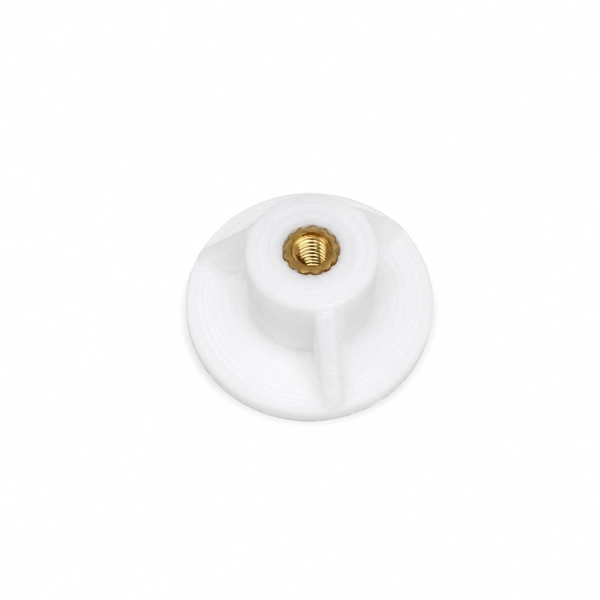

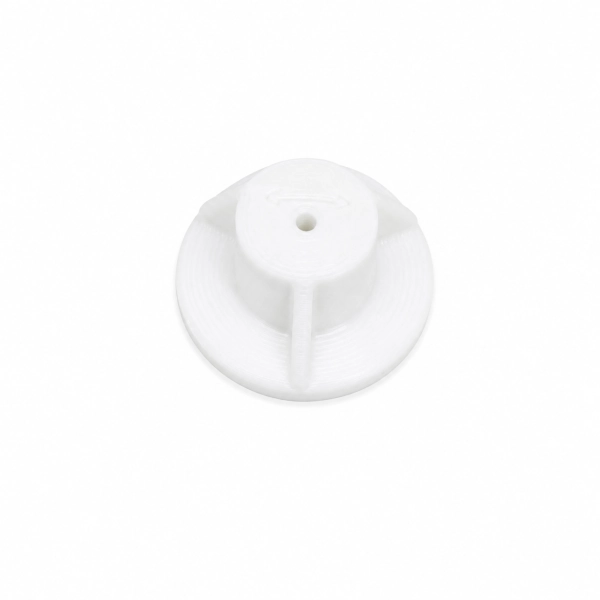

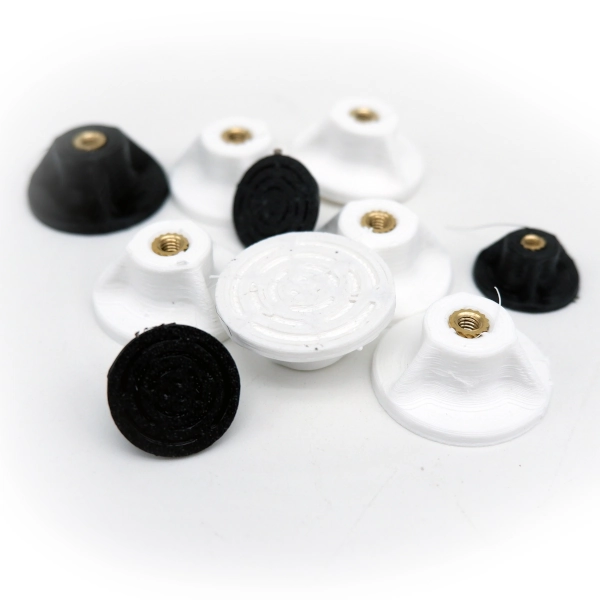

Glue-on padeyes with or without insert

Simplify the installation of your electrical and electronic equipment with our glue-on padeyes, the ideal solution for solid, clean fastening without drilling. Designed to simplify your life, our padeyes fix in a flash without drilling, saving you time and preserving the integrity of your surfaces.

For bonding, we recommend a polyurethane structural adhesive such as Sikaflex® 292i, commonly used in the boating world. (Not supplied)

Advantages :

  • Fasten your equipment in just a few minutes, without drilling.
  • Available with integrated M3 or M4 insert.
  • Also available without insert for greater lightness
  • Once bonded with a polyurethane structural adhesive such as Sikaflex® 292i (not supplied), padeyes ensure reliable support for your equipment.
  • Avoid damage to the structural parts of your support thanks to no-drill installation.
  • Optimized cooling: the space created between the partition and the appliance encourages air circulation and contributes to better cooling.
  • The padeyes are slightly flexible for self-alignment of fixing points, adapting to surface irregularities.
  • For installation on vertical surfaces or ceilings, a spot of hot glue in the center holds the padeye in place while the structural glue sets.
  • 3D printed fromIstroflex, a flexible filament made from polymer and cosmetic-grade oyster shell powder from France (Morbihan).

Installation tips

  1. Clean the bonding surface thoroughly.
  2. Apply Sikaflex® 292i polyurethane structural adhesive to the padeye surface.
  3. Position the padeye on the surface and hold it firmly for a few moments.
  4. For vertical surfaces or ceilings, add a spot of hot-melt glue in the center for optimum hold while the structural glue dries.
  5. Allow to dry completely before attaching your equipment.
  6. Screws not included

Technical specifications

  • Material: Istroflex, a flexible filament based on biodegradable polymer and cosmetic-grade oyster shell powder from France’s Morbihan region.
  • Dimensions: 20 or 30 mm diameter (depending on model)
  • Insert type: without insert, M3 or M4 insert (depending on model)



DiamètreHauteurInsertPoids
20 mm8.67 mmM31.7 g
30 mm13 mmM45 g
20 mm8.58 mm-1.5 g
30 mm13 mm-4.5 g

Additional information

Weight N/A
Diameter

,

Insert

Insert M3, Insert M4, Without insert
