Ronstan low friction ring

Description

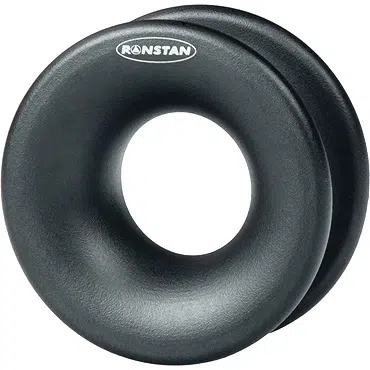

Ronstan low friction rings

Made of aluminium, they offer excellent performance, lightness and durability. The anodising provides a smooth surface and the rounded shapes ensure good circulation of the ropes circulation and reduce their wear. These low-friction rings are perfectly suited for applications such as mast foot, barber, lazy-jack, block and tackle, backstay, etc…

These last years, friction rings have taken over the decks of race boats. Cost-effective, they have rapidly become commonplace in the world of leisure yachting. Weight-saving, resistance, performance.





Référence	Pour cordage de Ø max	A	B	C	D	Charge de travail	Poids
08.07	7 mm	8 mm	22 mm	7 mm	11 mm	1000 kg	4 g
11.08	9 mm	11 mm	29 mm	8 mm	13 mm	2000 kg	8.4 g
16.11	12 mm	16 mm	38 mm	11 mm	17 mm	5000 kg	17.3 g
21.14.5	16 mm	21 mm	47 mm	14.5 mm	22 mm	7000 kg	33 g



See our file about low friction rings! !
